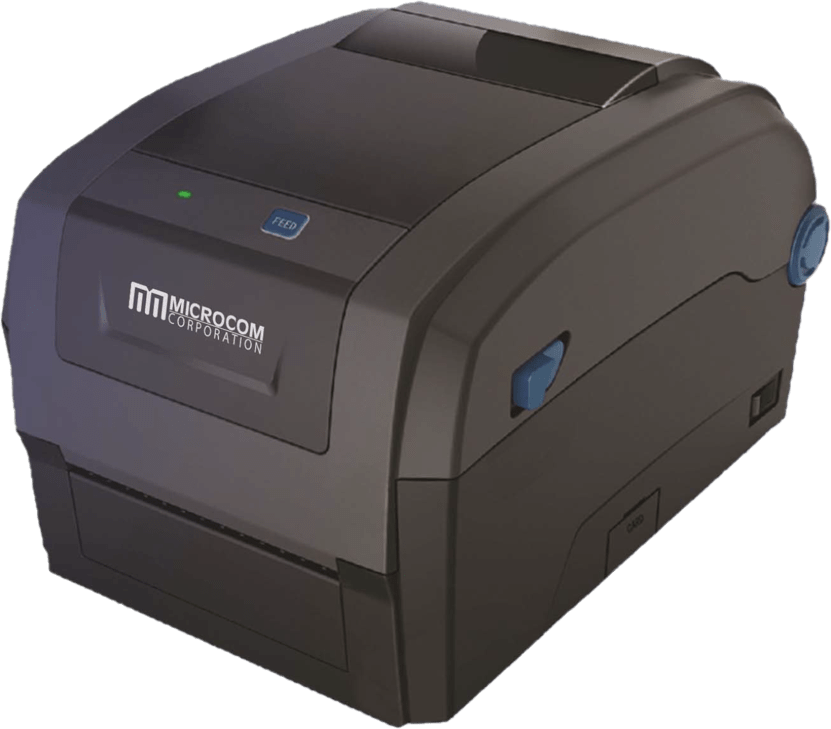

Microcom BTP-3200/3300

$599.00$799.00

Features:

  • Innovative and small design, user friendly operation
  • Thermal transfer printing
  • Low noise, high print speed
  • With large memory(64MB SDRAM) and can preload more bitmaps
  • Easy paper loading, convenient operation
  • Support BPLA, BPLZ, BPLE 3 different programming languages
  • Long TPH lifetime and high quality

Applications:

  • Retail
  • Logistics
  • Hospitality
  • Factory

Availability: Contact NeuraLabel Sales at 281-207-8555. The online store will be functional soon.

SKU: N/A Category:

Description

Fonts

Item BTP-3200/3300
Print Print Method Thermal Transfer/Direct Thermal
Resolution 203DPI and 300DPI
Print width 106mm Max.
Print speed 102mm/s (Max.)
Memory SDRAM: 64MB, Flash:4MB, can be extend to 8MB
Sensors Media Sensors TPH position, TPH overheating protection, Mark sensor, Paper existence
Drivers Windows drivers(Win2000/XP/2003/VISTA/2008/Win 7 /Win8), Linux

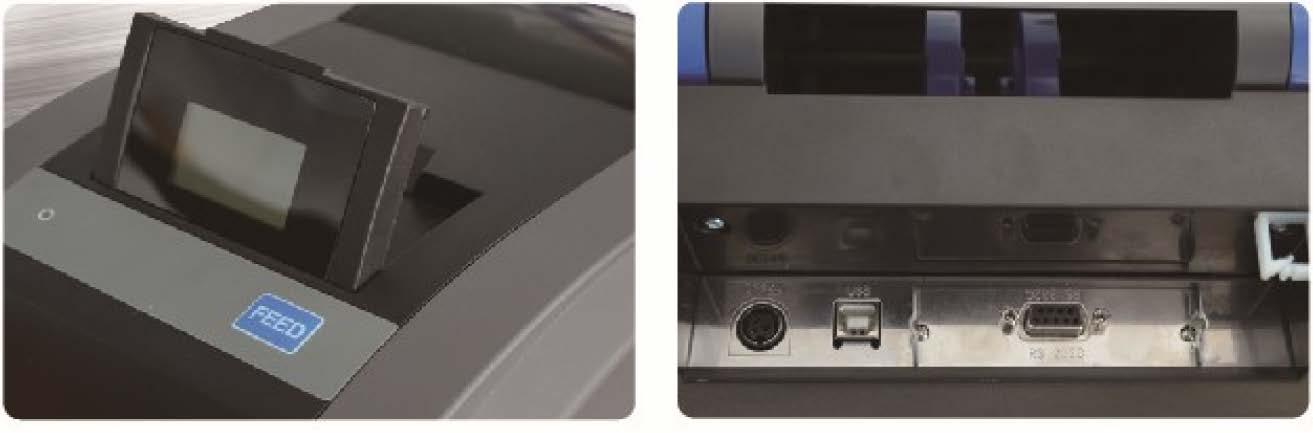

Interface Standard: USB(On-board)
Optional: Serial, Parallel, Ethernet,WLAN(Wi-Fi)
Button,LED,LCD 1 button, 1 LED, 1 LCD(optional)
Barcodes Barcodes 1D: UPC-A, UPC-E, EAN13, EANS, CODE39,
CODE93, ITF25, Industry/lTF25, CODABAR,
CODE128, HBIC (code 39 with verify symbol),
UPC2, UPCS, Post2S(China), UCC/EAN CODE, Matrix 25,
POSTNET CODE, Storage and transportation code
2D: PDF417,QR,MaxiCode
Fonts Normal used single-byte fonts: FONTO ~ FONTS, 6 kinds of ASD smooth fonts, 8 kinds
of Courier fonts;
User-defined fonts: User can define font and download it to FLASH or SDRAM
Character modification Rotate (0°, 90°, 180°, 270° ), enlarge (1-8x)
Graphics Graphics printing Binary non-format bitmap, HEX, PCX, BMP and !MG bitmap can be downloaded to
FLASH or RAM
Paper Paper type Continuous paper, Label paper, Marked paper, etc.
Paper width 120mm (Max.)
Paper roll OD 127mm (Max.)
Paper roll ID 12.7mm/25.4mm
Paper out Tear-off, peel-off, cutter
Power supply Input 110-240V AC, 50-60Hz
Output 24V DC, 4.5A

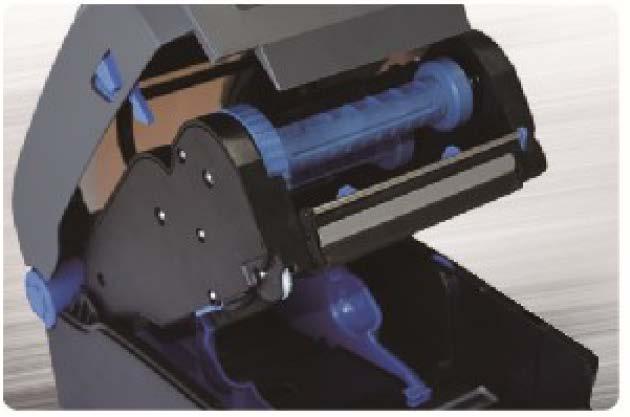

Ribbon Ribbon length 300m(Max.)
Ribbon ID 25.4mm
Environment Operation conditions 5 ~ 45° C, 20 ~ 90%RH(40° C)
Storage conditions -40 ~ 60° C, 20 ~ 93% RH(40° C)
Physics Spec. Dimensions 216(W)x 306(D) x 185(H) mm
Weight Approx. 3.45Kg
Standards CE, CB, UL, FCC

Additional information

Resolution DPI

203, 300
