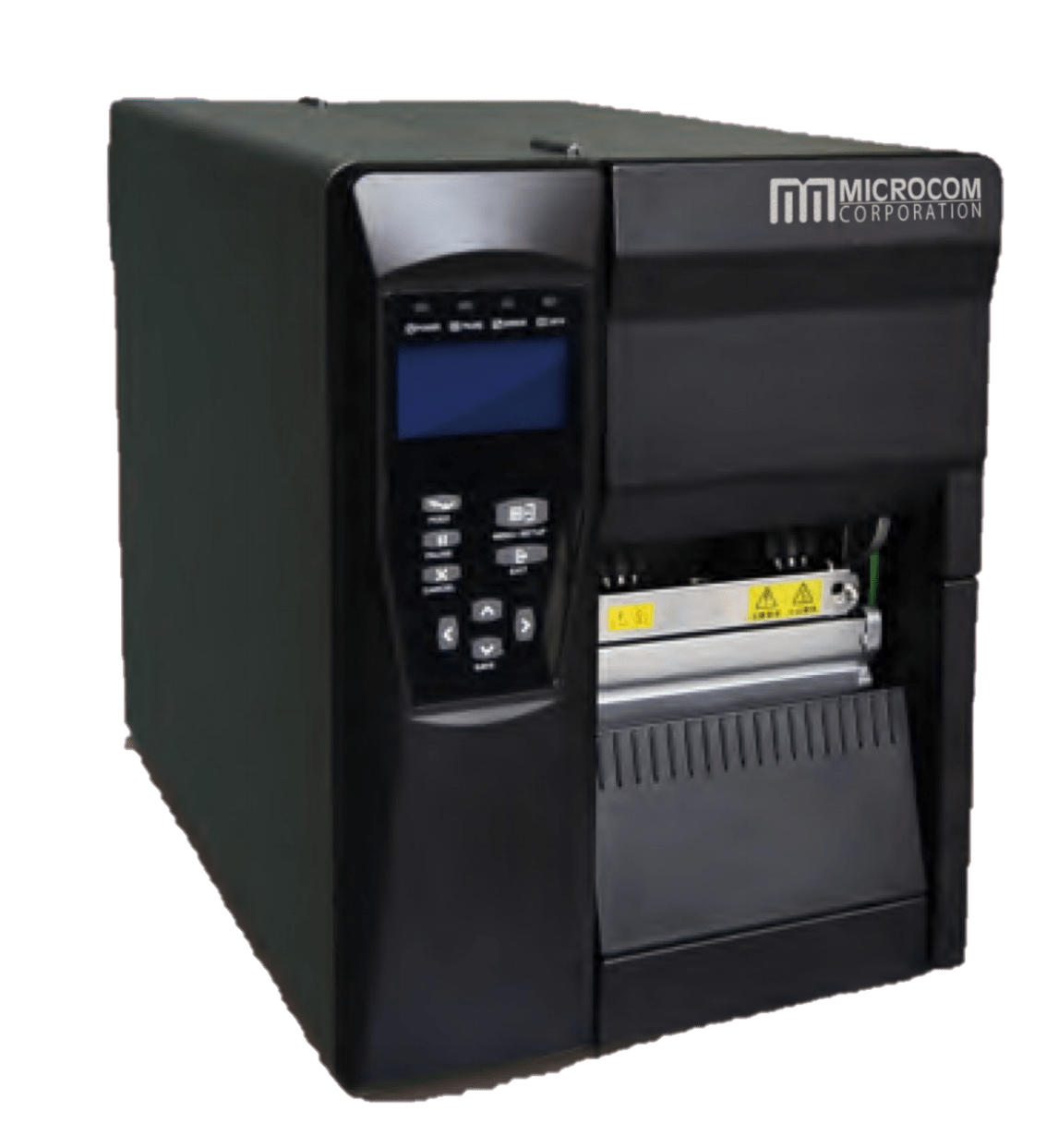

Microcom BTP-7400


Humanization Design:

  • Configure with large LCD display, easy operation
  • Opened paper path, sufficient operation space, convenience consumables replace
  • Patent design for easy ribbon loading/unloading, achieves one-handed performance
  • Offline updates system and firmware with U disk, Easy Maintenance

Durability, Reliability, 24/7 hrs Operation:

  • Precise metal gears transmission, ensure paper feed and printing resuIt
  • 8KV antistatic capability, advanced from nation standard (4KV) , applicable for various working ccnditions
  • Advanced thermal history control algorithm and cast aluminum printing head with high efficiency heat dissipation, achieves 24 hrs continous prining
  • Customized industrial grade power supply makes desired printing quality to print different density without reduction of printing speed(state-of-the-arts tech)


  • Use imported industrial grade print head, printing speed reachs 12 IPS(30Smm/s)
  • Full region floating print head patent technology, adjustable optimal printing result for differnt media
  • The pressure of the printer head is limitless adjustable, compatible with various
    specifications consumables
  • 600mm extra-length ribbon roll (inside or outside thermal surface), meets the client requirements, is advanced industry level
  • Specia Designed sensors, triple positioning acuuracy to standard sensors
  • Embedded Linux OS with strong expansibility, supports keyboard, scanner, SD card, U disk
  • Free Bara Tender label software and Seagull drivers

Availability: Contact NeuraLabel Sales at 281-207-8555. Online ordering is coming soon!

SKU: N/A Category:



Item Specifications
Print Print Method Thermal Transfer/Direct Thermal
Resolution 203DPI and 300DPI
Print width 104mm
Print speed 305mm/s
CPU 32 bit RSC microprocessor
Memory SDRAM : 256MB
Flash : 256MB, extend FLASH : supports FAT32 U disk or SD card
Interface Standard: USB+Serial+Parallel+Ethernet
Optional : Wireless Ethernet
Instruction set BPLE. BPLZ
Sensors Media Sensors Transmissive sensor ( Movable) , Reflective Sensor ( Movable )
Character set STD single bype : FONT0 to FONTS. 6 ASD smooth Fonts. 8 Courier Fonts
Self defined : User can define Fonts by download Fonts to Flash or SDRAM
Enlarae/Rotate Enlarae 1 – 8x ; Rotate ( 0′ , 90′ , 180′ , 270′ )
Graphics Graphics Handling Bitmao, HEX, PCX, BMP and IMG can download to Flash or RAM
Barcodes 1D barcodes Code 39 , UPCA , UPCE , Interleave 2of5 , Code 128 , EAN13 , EAN8 ,
HBIC , Codabar, Industrial 2of5 , Dispath code, UPC2 , UPC5 ,
Code 93 Post 2of5 (China), UCC/EAN Matrix 2of5 POSTNET etc.
2D barcodes PDF417,MicroPDF417,Datamatrix, MAXICODE Code QR, GS1 Composite etc.
Media Media type Label (Chrome/PET/PVC), Marked, Continous, Fan-fold,Washed mark etc.
Media width 120mm(Max.)
Media Thickness 0.0635<-0.3mm
Max roll OD Max 203mm
Roll ID
38mm – 76mm
Max. 110mm
Ribbon Length
Ribbon ID
Op. interface Buttons/LEDs
9 buttons 4 LEDs
128×64 resolution, Chinese/English language
Power Input 110 240V AC, 50/60HZ
Output 24V DC, 4.5A
Environment Operation conditions 0’C – 4S’C ; RH : 20% – 90% ( Non-condensing)
Storage conditions -40 C – 60 ° C ; RH 5% ~ 93% ( Non-condensing)
Physics Spec Dimensions 280(W)x 480(D) x 370(H) mm
Weight Approx. 19Kg

Additional information

Resolution DPI

203, 300


2 Years, 3 Years
