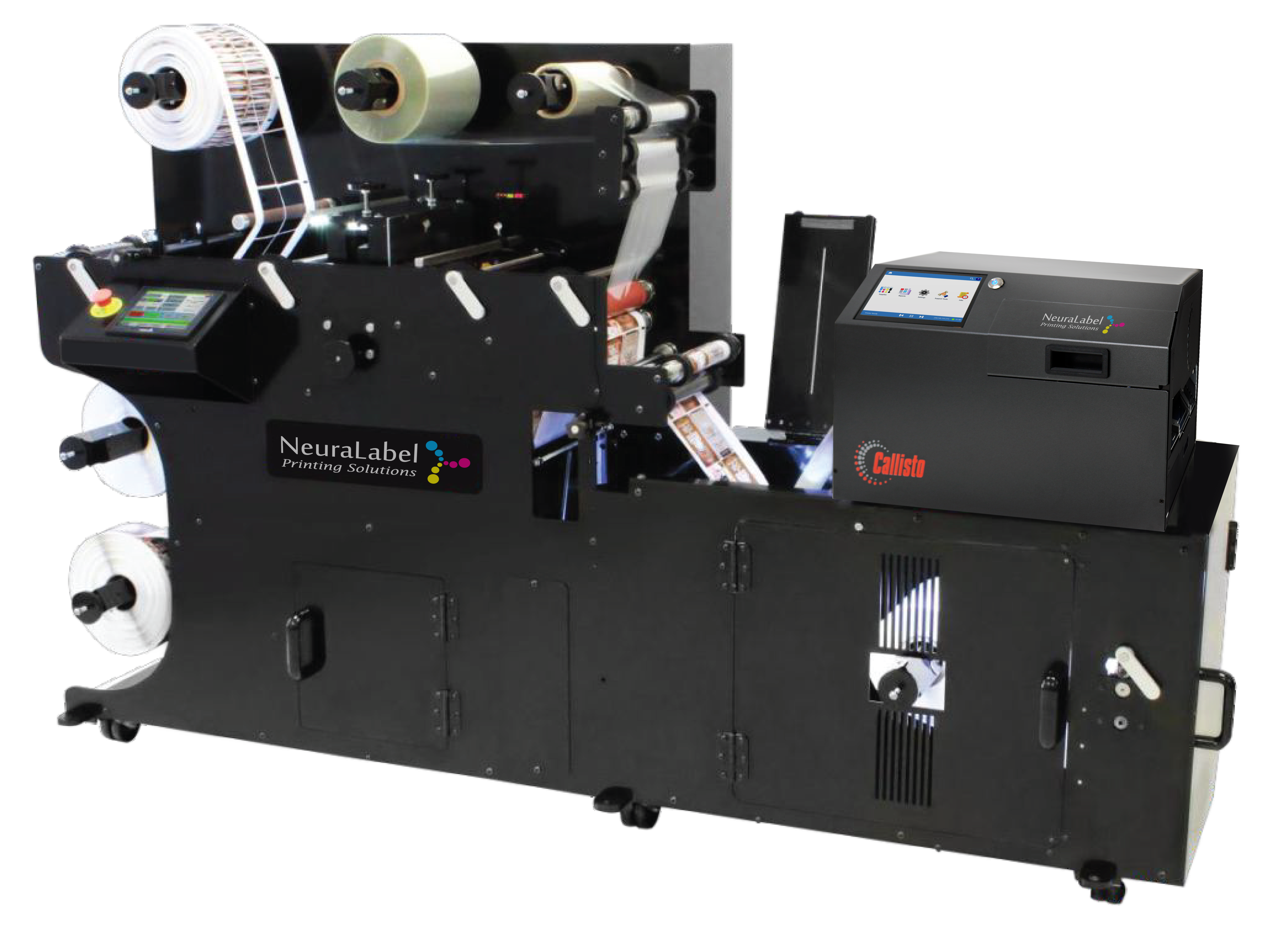

  • NeuraLabel TotalPress full view

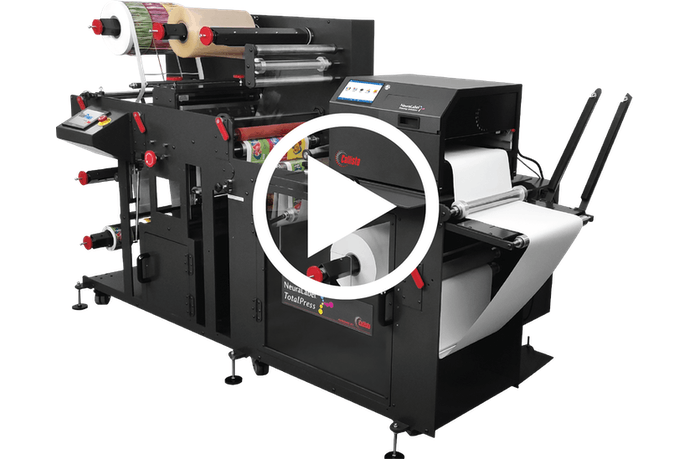

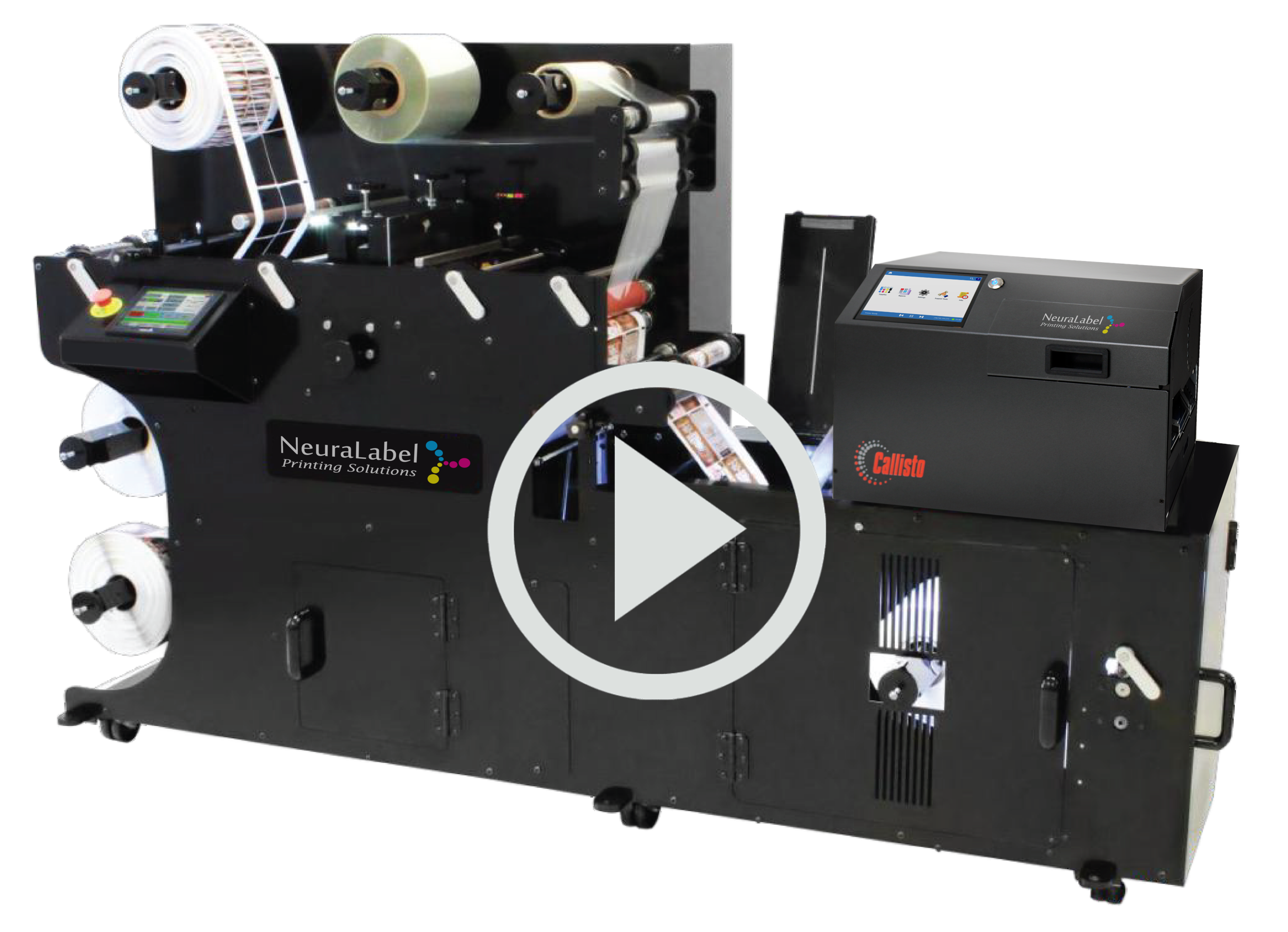

  • NeuraLabel TotalPress label press video

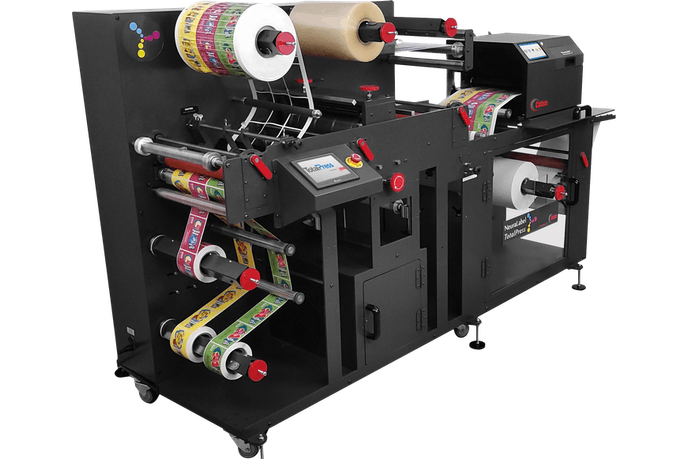

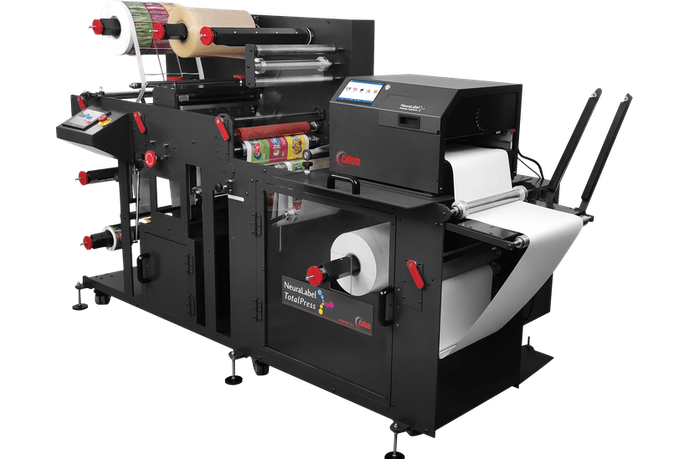

  • NeuraLabel TotalPress slanted front view

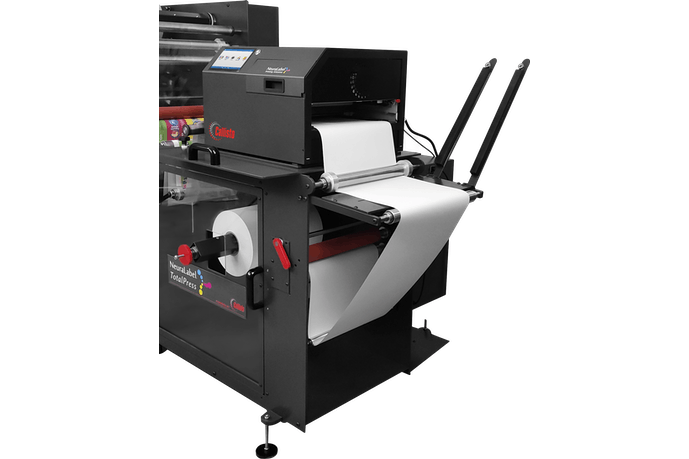

  • NeuraLabel TotalPress Callisto with label feed

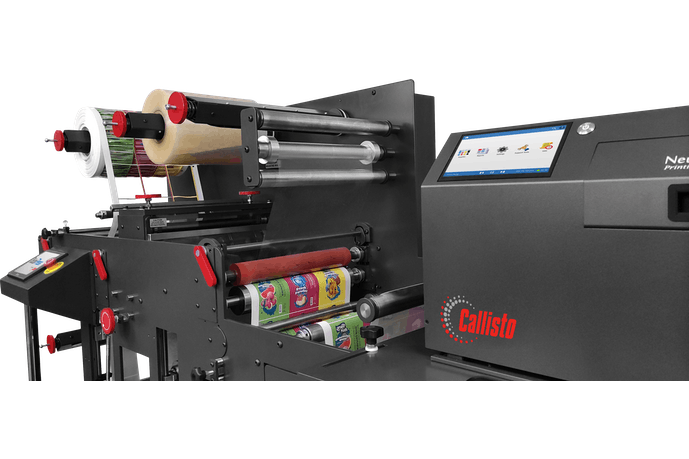

  • NeuraLabel TotalPress with waste matrix remover and lamination section

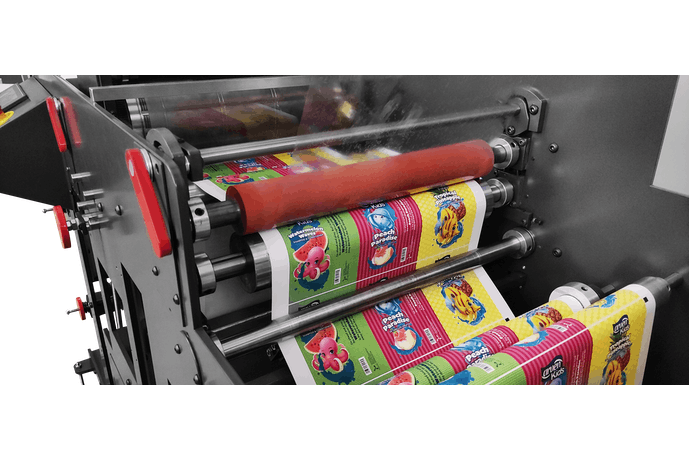

  • NeuraLabel TotalPress lamination section
  • NeuraLabel TotalPress leftside view

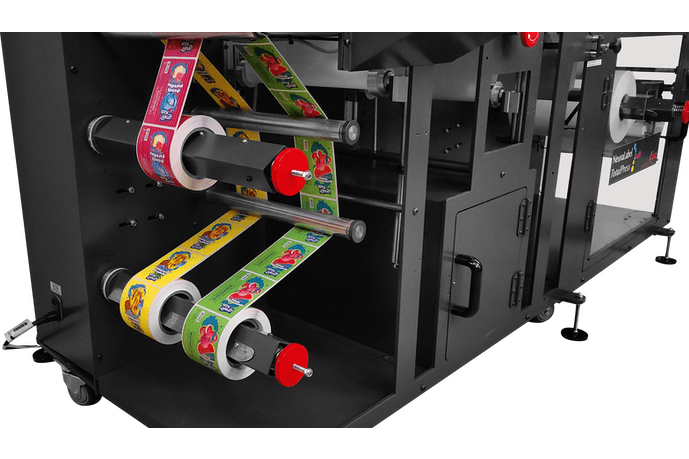

  • NeuraLabel TotalPress lower left view

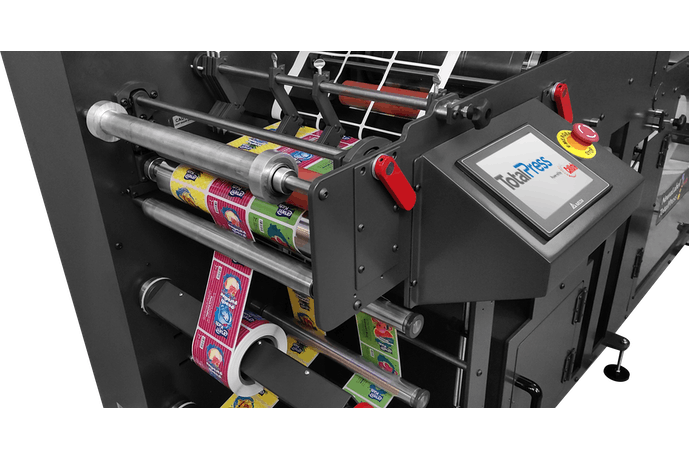

  • NeuraLabel TotalPress control panel

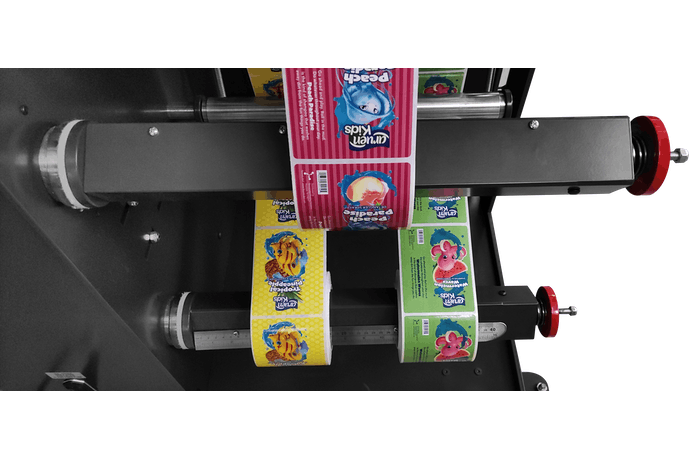

  • NeuraLabel TotalPress closeup of labels
NeuraLabel TotalPress label press video

NeuraLabel TotalPress 3000 Series
High-Volume Digital Label Press

  • High-Volume Production with extra-wide print path
  • Quality High-Resolution Printing Powered by Callisto
  • Durable UV-Resistant Pigment Inks
  • In-Line Print, Laminate, Die-Cut and Slit
  • Large Media Rolls for printing productivity
  • Finishing speed up to 18 inches/second
  • Affordable Flexible Magnetic Dies
  • Value Leader for in-house label production
CONTACT US


NeuraLabel TotalPress 3000 Series
Powered by Callisto

High-Volume Inline System that prints and finishes labels for complete flexibility in-house.

The NeuraLabel TotalPress 3000 Series can print, die cut, and finish labels at up to 90 feet per minute. This total solution can laminate, die cut, waste removal, slitting, and rewinding to finished rolls ready for product application.

NeuraLabel TotalPress 3000 Series adds essential flexibility for high-volume label consumers. Bring label production in-house to simplify inventory, reduce costs, and creative flexibility.

Print shops are also using the NeuraLabel TotalPress to offload short runs from larger, more expensive equipment or to add the capability to produce labels in-house—allowing for faster turnaround, better quality control, and more profitability on lower-volume label runs.

See a list of available media.

NeuraLabel TotalPress 3000 Series Specifications
Print Speed Variable Speed Control Up to 18 inches per second (457 mm per second)
Print Quality 1200x4800 DPI Full Color
Ink NeuraLabel Durable Pigment Ink
Structure Steel Frame with LED Illuminated Work Area
Cutting Dies Flexible steel - From 50 mm to 380 mm Repeat
Laminate Self Wound or Linered
Dimensions 90.55" (230 cm) W X 56.66" (149 cm) H X 33.46" (85 cm) D
Weight 429.9 lb (195 kgs) net
Print Web Width 12" (304 mm)
Maximum Web Width 13" (330 mm)
Maximum Diecutting Width 13" (330 mm)
Maximum Diecutting Length 15" (381 mm)
Maximum Roll Diameter 17.3" (440 mm)
Maximum Laminate OD 11.8" (300 mm)
Maximum Finished Label Rewind 11" (280 mm)
Maximum Waste Matrix Rewind 11.8" (300 mm)
Razor Slitter Assembly 6 Knives - Lateral Adjustment 0.47" (12 mm)
Back Slitters 2 Rotary Knives
Power 240v; 9amps
Powered Unwind 3280 feet (1000 Meters)
Sensor Mark 5 mm x 7 mm Registration: +/ - 0.2 mm
Registration Sensor Laser with Adjustment of 3.9" (100 mm)
Lateral Die Head Adjustment 0.47" (12 mm)
Core Sizes 3" (76 mm)
Loop Proximity sensors
Motors 2 Servo, 4 Speed control
Control PLC and Servo controllers
