Colamark FX101 Labeling System

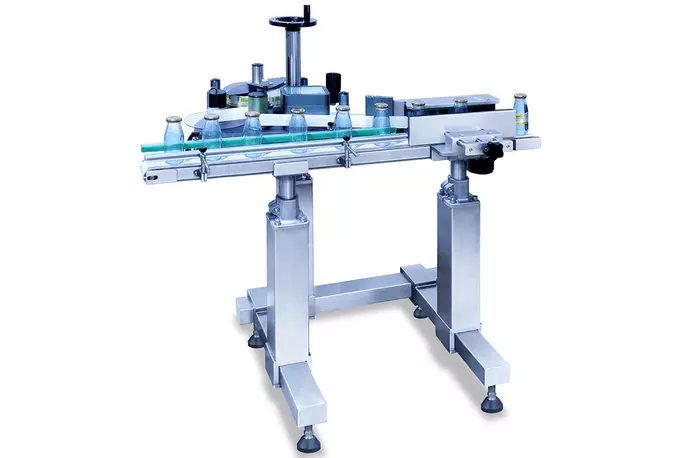

  • Colamark FX101 full view

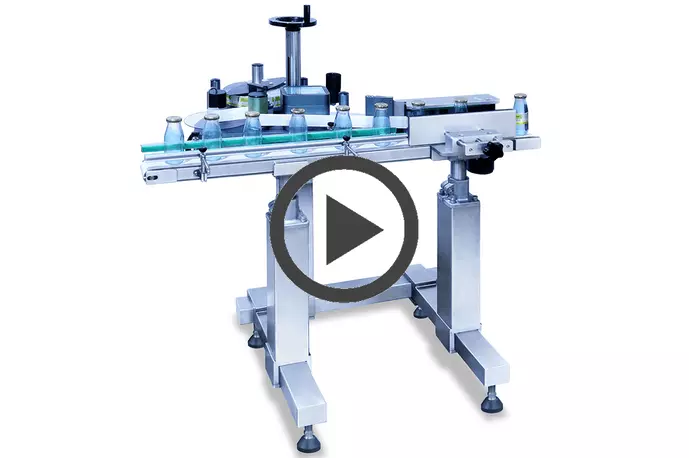

  • Colamark FX101 video

Colamark FX101 - Round Bottle Labeling System

  • Apply labels to round objects up to 3.75″ in diameter
  • Ideal for off-line, handle loaded product labeling or lower speed inline applications
  • Small footprint for tight production environments
  • Easy to operate touch screen HMI
  • Easy to maintain
  • Modular construction

Colamark FX101
Label Applicator for Preprinted, Pressure-Sensitive Labels

Compact, general purpose integrated vertical wrap labeling system for bottles

The Colamark FX101 label machine is a general purpose integrated vertical wrap labeling systems with a compact footprint making it ideal for tight production environments. It is designed for preprinted, pressure sensitive label application to round products up to 3.75″ in diameter. It has a wrap belt that runs 1.65 times faster than the conveyor speed eliminating the need for product metering in many applications.

The FX101 is easy to operate and maintain. It has an easy to operate touch screen panel and includes 50 memory presets. It is made of anodized aluminum and has casters for easy movement.

Colamark FX101 Specifications
Model FX101
Name Wrap Belt Labeling System
Labeling Engine LS100 200mm (4″)
OD Roll Capacity 300mm (12″)
ID Core 75mm (3″)
ID Core 75mm (3″)
Media Width 104mm (4.125″)
Stepper Drive 30M/minute
Conveyor Belt 87mm x 1 M
Wide Wrap Belt and Backing Plate 100mm
Electricity 110 VAC/20A

Contact support at or 281.207.8555 x1.
