Colamark FX741 Labeling System

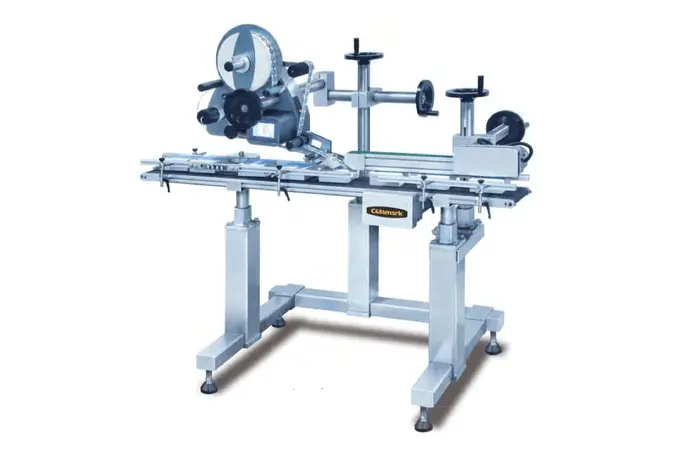

  • Colamark FX741 full view

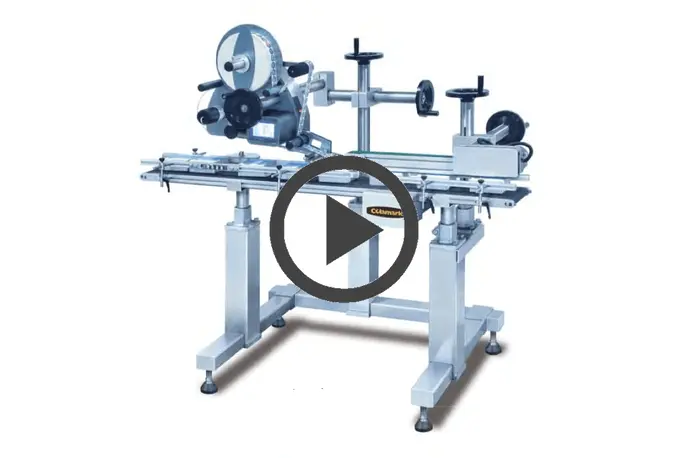

  • Colamark FX741 video

Colamark FX741 - Top Labeling System

  • Apply labels to square or rectangular objects up to 8″ wide
  • Small footprint for tight production environments
  • Ideal for off-line, handle loaded product labeling or lower speed inline applications
  • Easy to operate touch screen HMI
  • Easy to maintain
  • Modular construction

Colamark FX741
Single Head Labeling System

Label applicator used for single head landing labeling for the sides or tops of bottles

The FX741is a flexible labeling machine designed by Colamark. The overall structure of the machine can be used for maximum disassembly and assembly, which greatly simplifies the proportion of packaging space of the equipment while facilitating flexible conversion of application needs. The FX741 is a single head labeling system for applying labels to the top or sides of square or rectangular bottles up to 8 inches wide. Ideal for off-line, handle loaded product labeling or lower speed inline applications.

Colamark FX741 Specifications
Model FX741
Name Flexible Modular Labeling System
Labeling Engine LS100 200mm (4″)
OD Roll Capacity 300mm (12″)
ID Core 75mm (3″)
ID Core 75mm (3″)
Media Width 104mm (4.125″)
Stepper Drive 30M/minute
Conveyor Belt 87mm x 1 M
Wide Wrap Belt and Backing Plate 100mm
Electricity 110 VAC/20A
