NeuraLabel Longitudinal Label Slitter

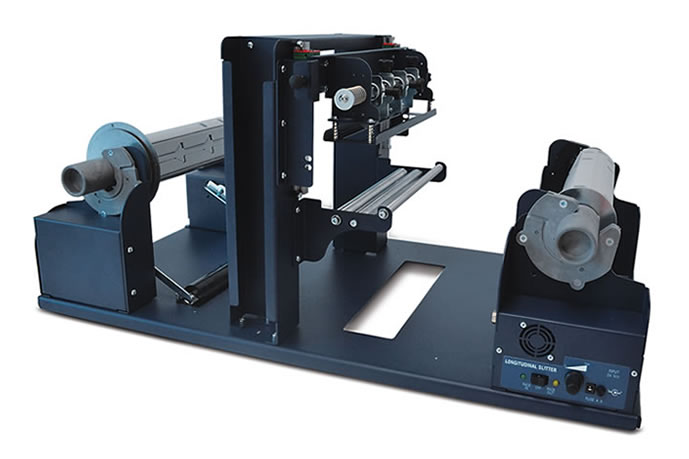

  • Longitudinal label slitter

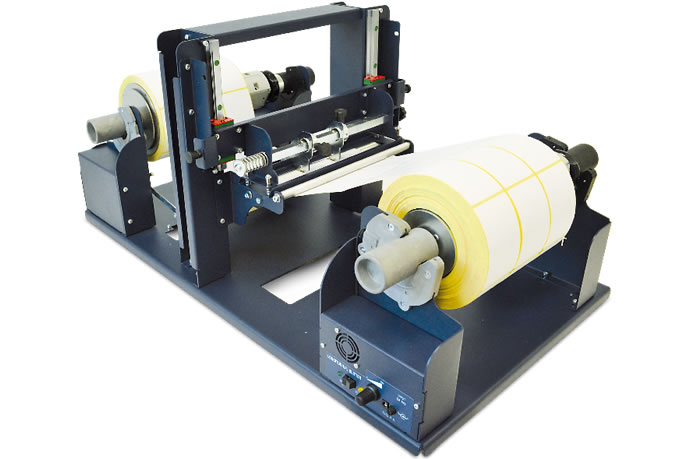

  • Longitudinal label slitter processing labels

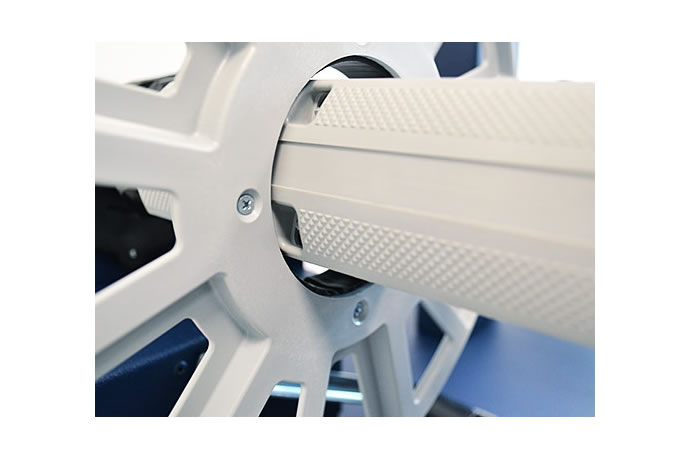

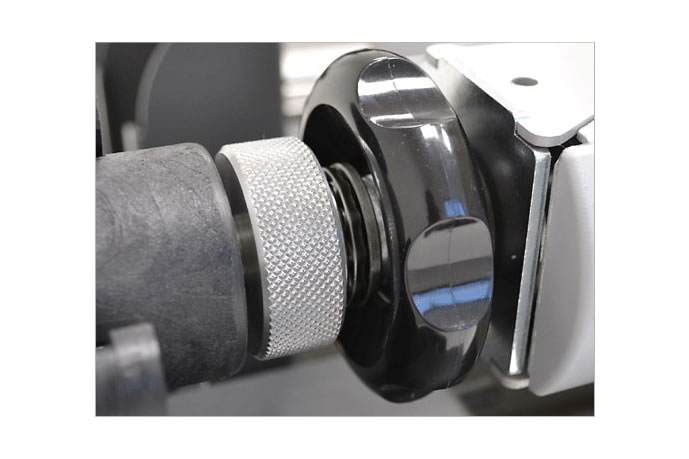

  • Longitudinal label slitter misc closeup

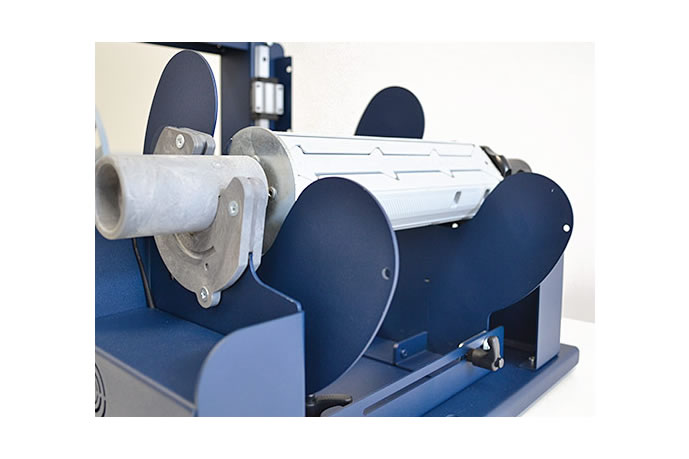

  • Longitudinal label slitter role

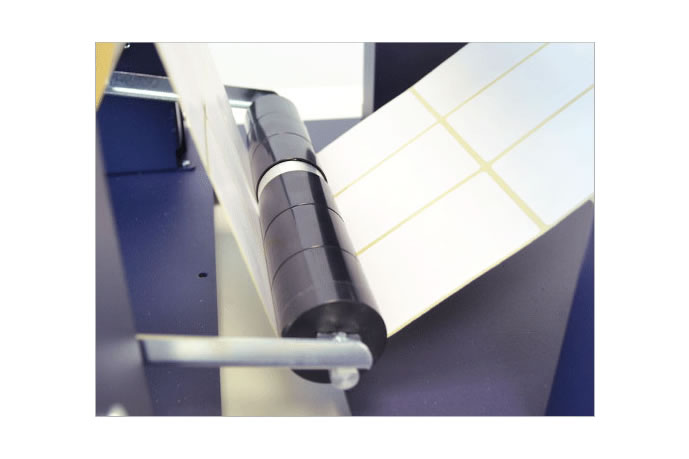

  • Longitudinal label slitter closeup of labels being slit

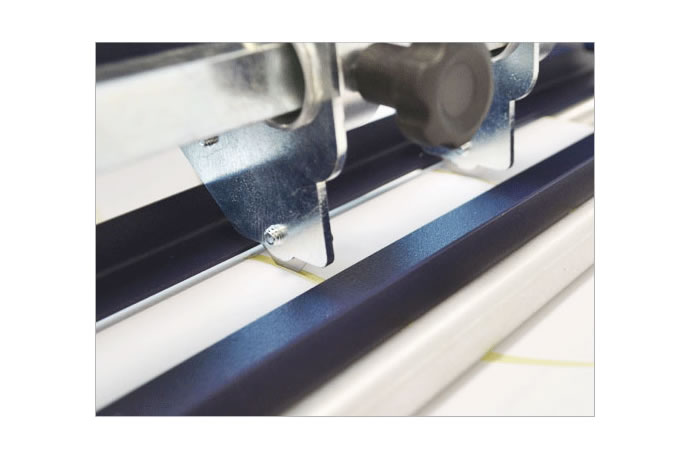

  • Longitudinal label slitter closeup of cutting blades

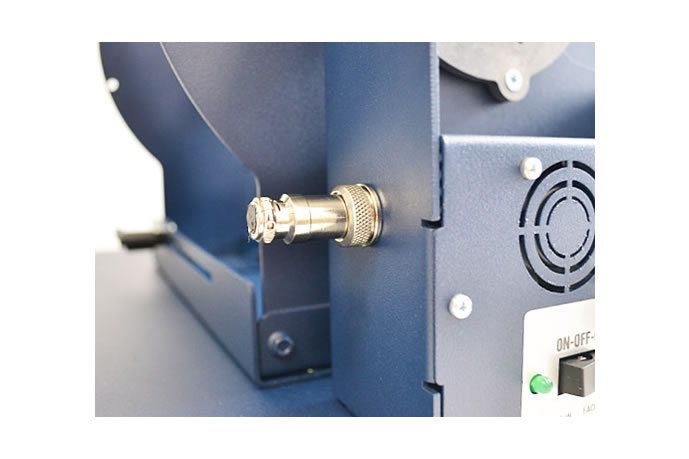

  • Longitudinal label slitter closeup of power switch
  • Longitudinal label slitter with finished roll of labels

Longitudinal Label Slitter for Label Printers

  • 3″ fixed core holders
  • Outside roll diameter up to 9.84″
  • Media width up to 9.84″
  • Minimum slitting width 0.86″
  • Manual speed adjustment
  • Label rewinding face-out or face-in
  • 100-240 vac power supply, 50-60 Hz, input of 24V, 5A

Longitudinal Label Slitter
Efficiently Cut Custom Product Labels

Make the most of the print area with more rows of labels from the same roll.

The longitudinal label slitter satisfies the present-day necessity to make the most of the print area with the possibility to obtain more rows of labels from the same roll, and then split it through the use of the slitter.

The cutting operations are done by a common cutter blade that is located in an apposite blade holder. The slitter has an external auto-switching 100/240V power supply and an electronic circuit controls all its functions.

The longitudinal label slitter, equipped with two 76 mm (3") fixed core holder is able to work rolls with a diameter of 250 mm (10"). The maximum width of the roll is 240 mm (9.45") and it is possible to obtain rows of labels not narrower than 19 mm (0.75").

Longitudinal Label Slitter Specifications•
Outside Roll Diameter Up to 10″ (250 mm)
Maximum Media Width 9.45″ (240 mm)
Minimum Slitting Width 0.75″ (19 mm)
Number of Slitting Blades 4 blades included
Roll Core Size 3″ (76 mm) fixed core holders
Dimensions L x 28.34″ (720 mm) H x 14.56″ (370 mm) W x 16.73″ (425 mm)
Weight 55 lbs
Warranty One year parts included. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.

Coming Soon
