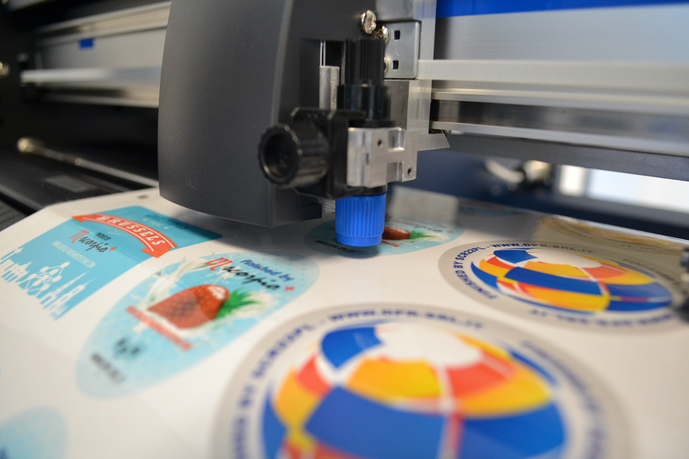

The system provides a very accurate label finishing solution that is using cutting plotter technology with reduced dimensions. This allows you to cut different types of materials and shapes on the fly without the added cost of dies.
The unit is also equipped with a cutter management tool that works in tandem with a camera, forming an integrated optical black-mark registration system that provides cutting speed optimization and avoids synchronization issues. The Virgo's core features offer the user full flexibility, limitless variations in label design, and a smooth workflow.

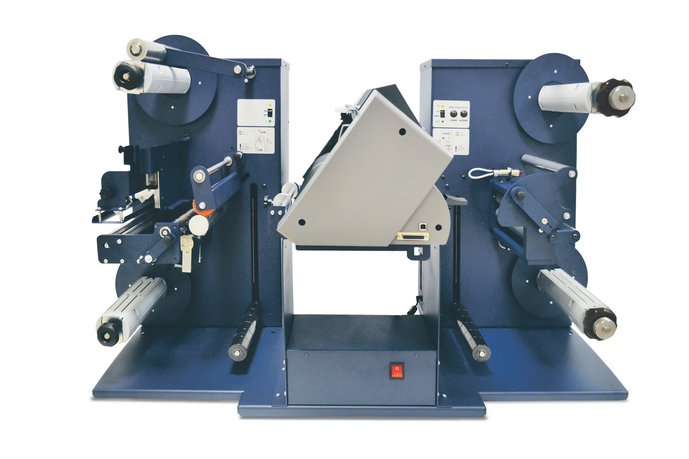

The Virgo digital label finisher is truly the perfect on-demand short-run label finishing solution for those using digital color label printers and presses.

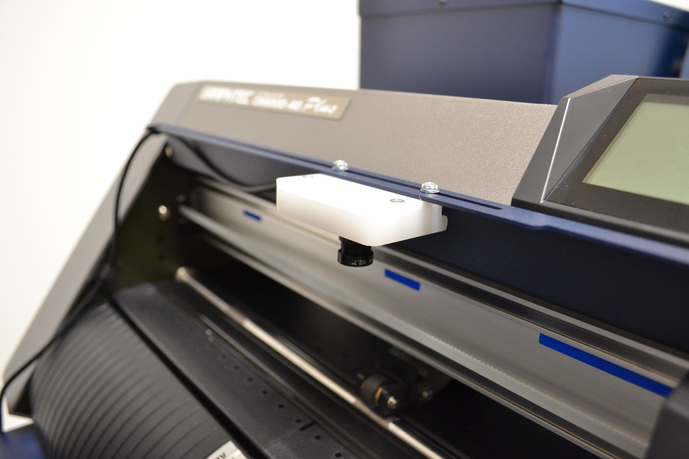

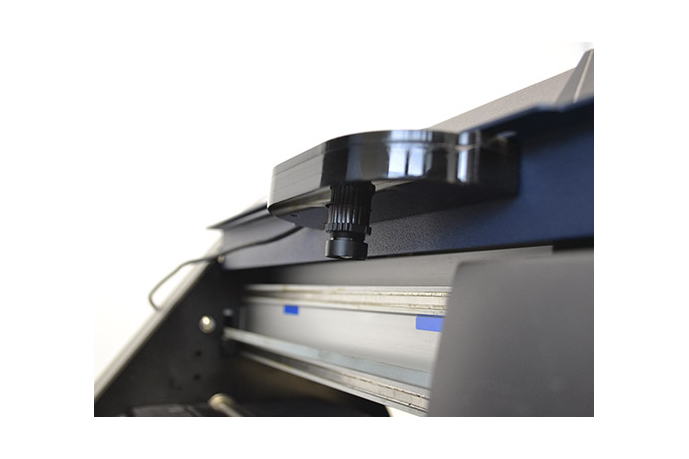

The Virgo finishing system is equipped with a camera that works together with Virgo software to detect the black-mark printed on the media. This camera assists the software in detecting the black-mark created inside the cutting file. This process tells the plotter when and where to start cutting the media. With Virgo software, the operator can also import the cutting files created in Adobe Illustrator or Corel Draw which is also used to create the black marker.

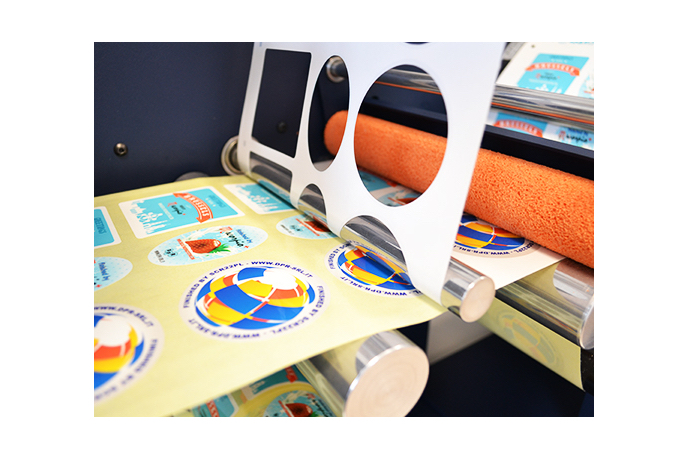

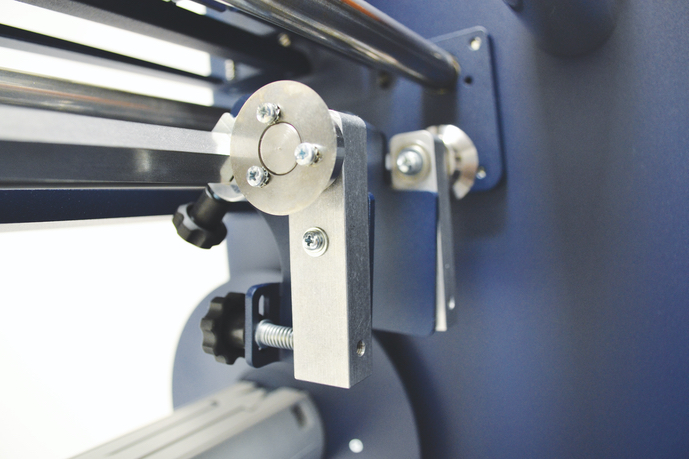

Waste pressing roll
The pressing roller positioned above the waste core holder facilitates the matrix removal from the die-cut roll, reducing the risk of tearing and ensuring more precise operation of the machine.

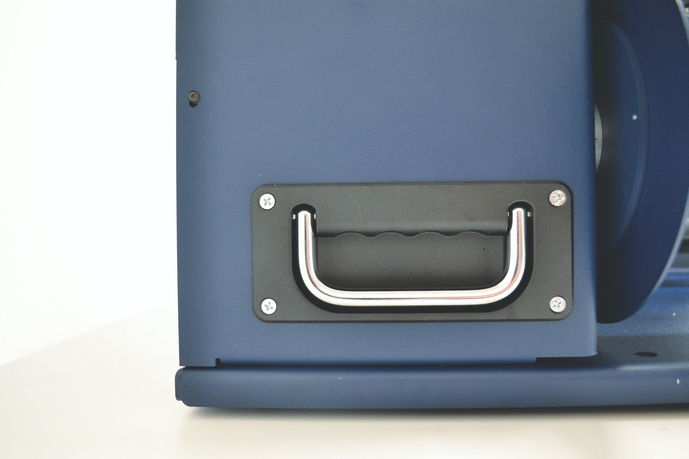

Easy to move
Virgo series are equipped with two handles, one on each side, that allow you to easily move the machine. This added benefit makes the Virgo a complete machine for all of your business needs.
|Input / Output Max. Roll Diameter||7.87″ (200 mm)||7.87″ (200 mm)|
|Minimum Media Width||3.94″ (100 mm)||3.94″ (100 mm)|
|Maximum Media Width||5.51″ (140 mm)||8.86″ (225 mm)|
|Maximum Cutting Width||4.80″ (122 mm)||7.87″ (200 mm)|
|Minimum Slitting Width||0.75″ (19 mm)|
|Minimum/Maximum Label Length||0.39″ (10 mm) / 13.77″ (350 mm)*

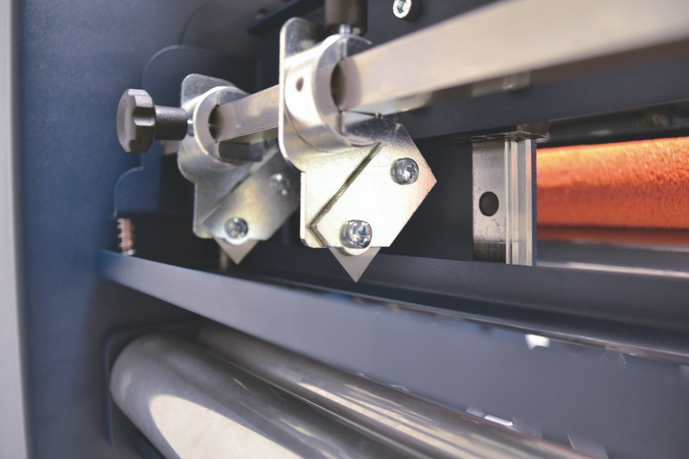

|Number of Slitting Blades||up to 6||up to 8|
|Maximum Media Thickness||10 mil (0.25 mm)|
|Maximum Cutting Speed||24 ips (600 mm/s) in all directions|
|Roll Core Size||3″ (76 mm)|
|Dimensions||L = 45.66″ (116 cm) H = 26.77″ (68 cm) W = 26.77″ (68 cm)|
|Weight (estimated)||220 lb (100 kg)||440 lb (200 kg)|
|Warranty||One year parts included. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.
