NeuraLabel 550e GHS Label Printer

  • NeuraLabel 550e GHS label printer
  • NeuraLabel 550e GHS label printer

NeuraLabel Label Printers

550e GHS Compliant Label Printer

  • Full color GHS-compliant and BS5609 approved labels produced on-demand directly from your label authoring system/software.
  • Continuous label printing for fan-folded and roll-to-roll label stock.
  • Automatic loading and cutting of continuous label media.
  • Jobs stored in printer memory for simple PC-free printing.
  • Prints a 500 label roll in less than 10 minutes.
  • Integrates with most graphical label creation software including SAP on Windows, Apple, and Linux, including SAP, GLM, and Loftware.
  • Most robust and easiest to use drum label printer on the market.
  • 1 Year Return to Depot, Premium On-site Service Available

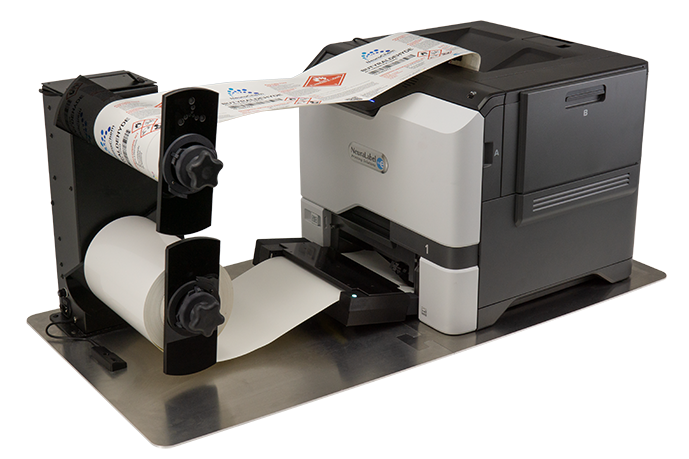

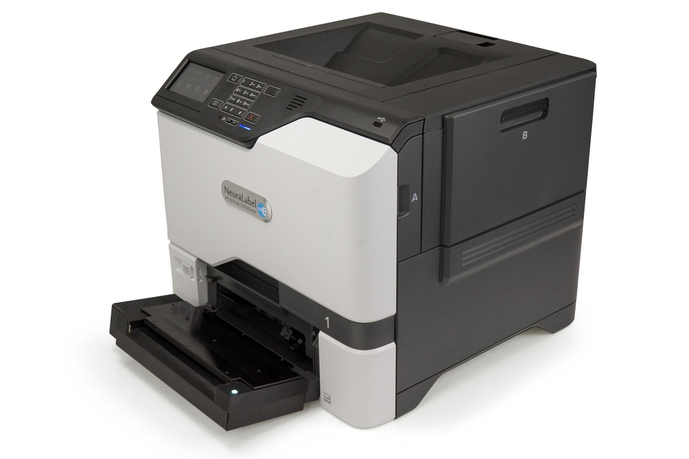

NeuraLabel 550e
Fully Automated, Continuous,
GHS-Compliant Label Printer

Design and print your own high quality custom labels in house with the digital NeuraLabel 550e laser printer.
NeuraLabel 550e Printer Specifications*
Print Speed Up to 11 inches per second (55 feet per minute) Continuous Form
Up to 50 pages per minute Cut Sheet
Media Specification Standard NeuraLabel Media Specification for Continuous Form
Standard sizes of Letter, A4 and Legal
Extended sizes of 8.5" width x 8.5" up to 48" length
Media Capacity Unlimited length with Continuous Form Feeder
550 Sheet Cut-Sheet Tray: Letter/A4/Legal, Duplex Printing
Media Type Paper, Polypropelene, Polyester, Vinyl and other label materials
GHS compliant drum label media have been qualified for use on the NeuraLabel 550e**
Printer Drivers Windows Postscript, PCLXL and PCL5*** Drivers
Linux Driver
Print Resolutions 1200 x 1200 dpi
4800 CQ (2400 x 600 dpi)
Interfaces Network Ethernet and Hi-speed USB
Consumables 20,000-page (K) and 12,000-page (CYM) High Capacity Print Cartridges
150,000-page (K) and 150,000 (CYM combo) Imaging Units
150,000-page Fuser
Recycling Program for Print Cartridges
Toner No Shake Unison Toner
Low Temp Fusing for broad range of Medias
Custom settings available to control toner usage
Media Sensor Media Gap or Black Registration mark sensor
Cutter Configurable to support job seperation or job combining
Accessories Internal Hard Drive
Label Stacking Basket
Winding Equipment
Size
Weight
Print Engine
18.7"W x 16.4"H x 19.6"D
83 pounds, pallet not required

Continuous Form Attachment
12"W x 2"H x 5"D
4 pounds
Processor/Memory 1.2 GHz,1.5 GB on board RAM
Electrical Specify 110V or 220V
Operating Environment 10 to 32 deg C (50 to 90 deg F)
8 to 80% RH
Compatible Software


The NeuraLabel 550e printer is a Windows compatible device. A Linux printer driver is also available. Any application that prints to a typical office printer can print to NeuraLabel 550e. Continuous form printing, however, requires applications that allow documents to be printed continuously. NeuraLabel 550e printer - compatible label authoring software applications include:

IHS/Atrion LPI (Label Print Interface) - Label printing software solution for global petro-chemicals industry products. www.atrionintl.com
BarTender - Design and print software for labels. www.seagullscientific.com NeuraLabel Printing Solutions is an authorized reseller of BarTender, the world's leading software for label, barcode, RFID and card printing. BarTender together with the NeuraLabel printer gives customers a unique and integrated software and hardware solution for printing GHS-compliant chemical drum labels.

EasyLabel - Barcode and RFID label software. www.tharo.com
CodeSoft - Codesoft by TekLynx is for those who have complex label design and integration needs. Easily integrate label printing and RFID technology into your business process.www.Teklynx.com
Loftware Label Manager - Industrial strength label design and printing.
Loftware Print Server (LPS) - Server-based software solution for managing and processing label print requests from corporate applications.
Loftware Connector for SAP Applications - Takes ERP system label printing to a new level, driving a seamless flow of supply chain and manufacturing operations. www.loftware.com
NiceLabel - NiceLabel software offers label designing and printing solutions with support for barcodes, databases, thermal transfer printers and open connectivity.. www.NiceLabel.com
SAP Global Label Management - SAP application for label printing. www.sap.com
The Wercs - Comprehensive, automated MSDS software for authoring. www.thewercs.com
Vision® - Label printing software from Reliance Label Solutions, Inc. www.reliancelabel.com
Adobe Reader X has been tested with NeuraLabel to print PDF files. This is a free download from Adobe. Whether you are using a label template or a simple PDF document, the pages will be printed on page per label on continuous label media.
