NeuraLabel 550e Roll-to-Roll System

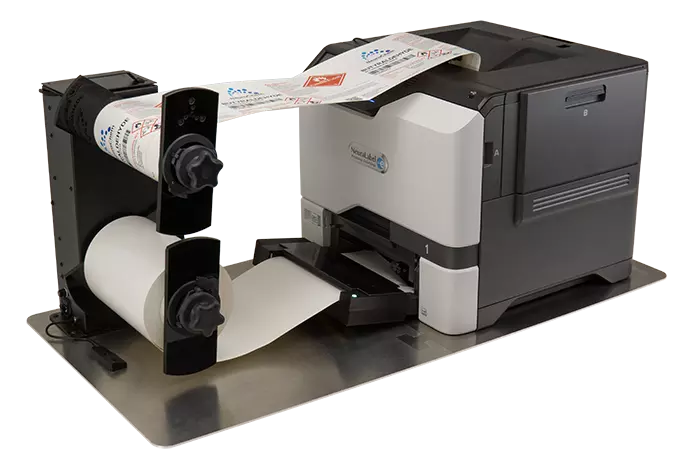

  • NeuraLabel 550e digital label press at angle

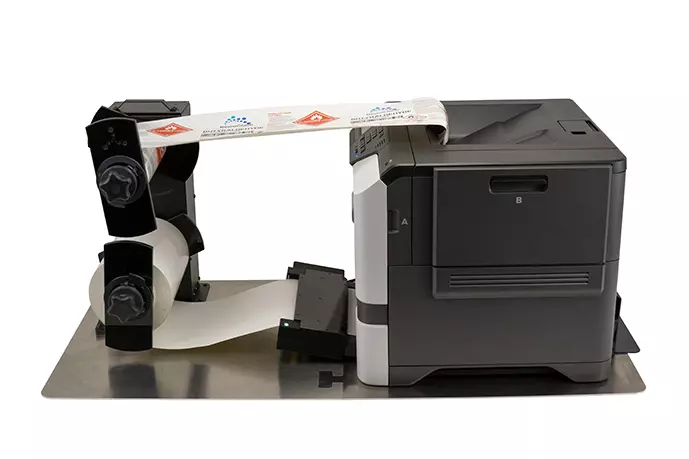

  • NeuraLabel 550e digital label press side view

NeuraLabel Label Printers

High-Performance Roll-to-Roll System for the NeuraLabel 550e Label Printer

  • Print stunning full-color labels at speeds up to 55 feet per minute
  • Engineered specifically for label production
  • Includes the NeuraLabel NoTouch™ Winding System and Continuous Feeder Attachment
  • Meets stringent BS5609 requirements for resistance to abrasion, saltwater immersion, and UV exposure
  • Single Pass, 4-Color Laser
  • 1200x1200 dpi print resolution
  • PANTONE® calibration with onboard sample pages for color matching
  • Unison low temperature toner for a broad range of media
  • Prints a 500-label roll in less than 10 minutes
  • Compatible with Virgo Digital Label Finisher to produce finished rolls

NeuraLabel 550e Roll-to-Roll System

Economical desktop roll-to-roll unit for creating full-color GHS labels in-house.

The NeuraLabel 550e Roll-to-Roll system has vertically stacked winders to provide a small desktop footprint. Pairing this roll-to-roll unit with the NeuraLabel 550e label printer provides you with a complete labeling solution.

NeuraLabel 550e Roll-to Roll System Specifications*
Print Speed Up to 55 feet per minute (11 inches per second)

Media Specification 8.5" width media rolls up to 8" OD on 3" cores
Media Capacity Unlimited length with Continuous Feeder Attachment
Media Type Self-Adhesive, Tag Stock, Approved Film/Synthetics
Printer Drivers Windows Postscript, PCLXL and Linux Drivers

Print Resolutions 1200 x 1200 dpi
4800 ColorQuality (2400 x 600 dpi)
Interfaces Network Ethernet and Hi-speed USB
Consumables Factory CMYK Toner 7,000 page capacity equivalent (5% coverage)
High Capacity Black Toner 20,000 pages (5% coverage)
High Capacity CMY Toner 12,000 pages (5% coverage)
Global Recycling Program for Print Cartridges
Toner No shake, low temp Unison toner for a broad range of media types
Custom settings available to control toner usage
Dimentions Complete System with NoTouch Winding System on Baseplate 41” W x 19” H x 20.5” D
Print Engine 18.7” W x 16.4” H x 19.6” D
Weight Print Engine 83 lbs.
Processor/Memory 1.2 GHz,1.5 GB on board RAM
Electrical Specify 110V or 220V
Operating Environment Temperature: 50° F - 90° F | Humidity: 8-80% RH
Compatible Software


The NeuraLabel 550e printer is a Windows compatible device. A Linux printer driver is also available. Any application that prints to a typical office printer can print to NeuraLabel 550e. Continuous form printing, however, requires applications that allow documents to be printed continuously. NeuraLabel 550e printer - compatible label authoring software applications include:

IHS/Atrion LPI (Label Print Interface) - Label printing software solution for global petro-chemicals industry products. www.atrionintl.com
BarTender - Design and print software for labels. www.seagullscientific.com NeuraLabel Printing Solutions is an authorized reseller of BarTender, the world's leading software for label, barcode, RFID and card printing. BarTender together with the NeuraLabel printer gives customers a unique and integrated software and hardware solution for printing GHS-compliant chemical drum labels.

EasyLabel - Barcode and RFID label software. www.tharo.com
CodeSoft - Codesoft by TekLynx is for those who have complex label design and integration needs. Easily integrate label printing and RFID technology into your business process.www.Teklynx.com
Loftware Label Manager - Industrial strength label design and printing.
Loftware Print Server (LPS) - Server-based software solution for managing and processing label print requests from corporate applications.
Loftware Connector for SAP Applications - Takes ERP system label printing to a new level, driving a seamless flow of supply chain and manufacturing operations. www.loftware.com
NiceLabel - NiceLabel software offers label designing and printing solutions with support for barcodes, databases, thermal transfer printers and open connectivity.. www.NiceLabel.com
SAP Global Label Management - SAP application for label printing. www.sap.com
The Wercs - Comprehensive, automated MSDS software for authoring. www.thewercs.com
Vision® - Label printing software from Reliance Label Solutions, Inc. www.reliancelabel.com
Adobe Reader X has been tested with NeuraLabel to print PDF files. This is a free download from Adobe. Whether you are using a label template or a simple PDF document, the pages will be printed on page per label on continuous label media.
