NeuraLabel Matrix Remover and Slitter

Matrix Remover and Slitter for Label Printers

  • Input/output roll diameter 9.84 inches (250 mm)
  • Maximum medi width 10 inches (240 mm)

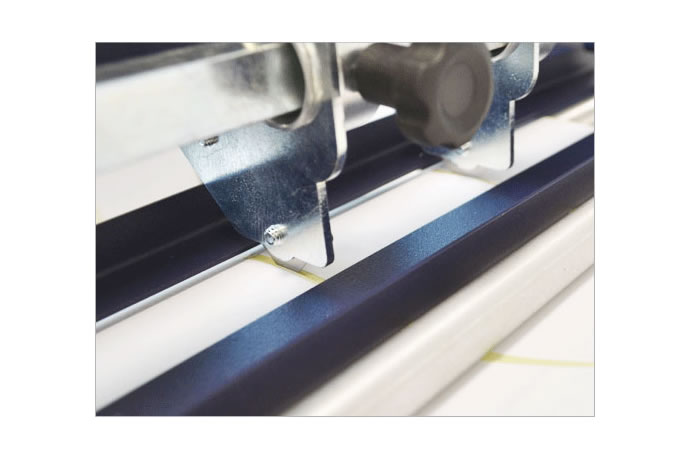

  • Minimum slitting width 0.75 inches (19 mm)
  • Manual speed adjustment
  • Label rewinding face-out only

NeuraLabel Matrix Remover and Slitter
Easily Cut and Remove Custom Product Labels

Unwind and remove the label matrix from a die cut label roll.

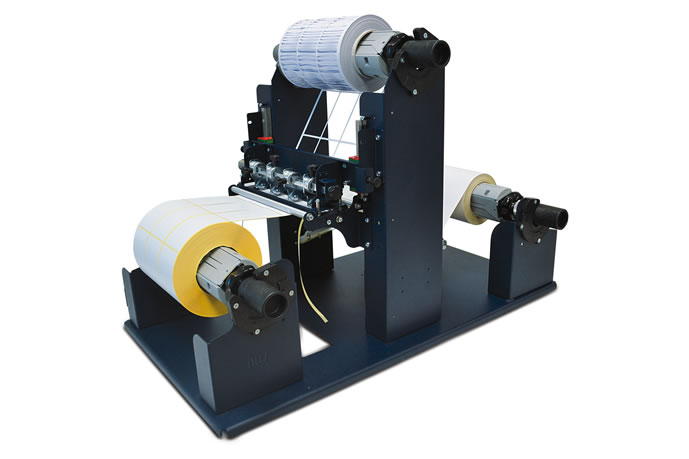

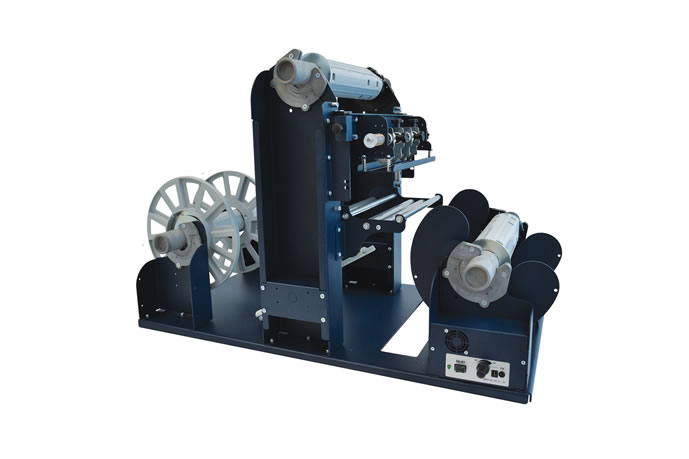

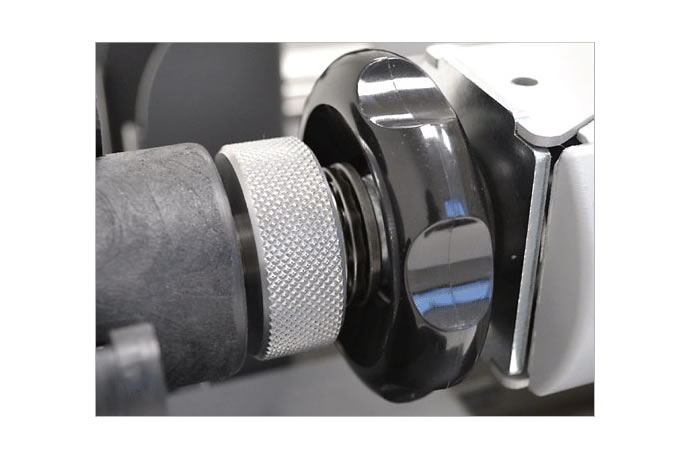

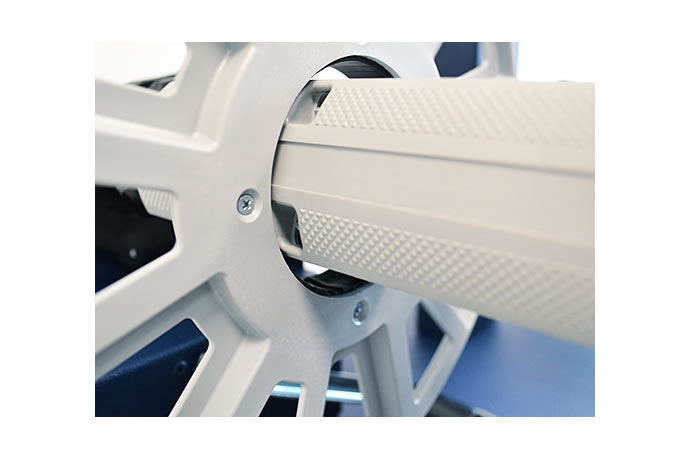

Matrix label removers and slitters give users the ability to unwind, remove the label matrix from a die cut label roll, slit and remove the waste material from printed or blank pre die-cut rolls of labels up to 8.86″ (225 mm) wide onto a 3″ (76 mm) cardboard motorized core holder rewinder with an outside diameter up to 9.84&Prim (250 mm). The finished labels will be rewinded face out only.

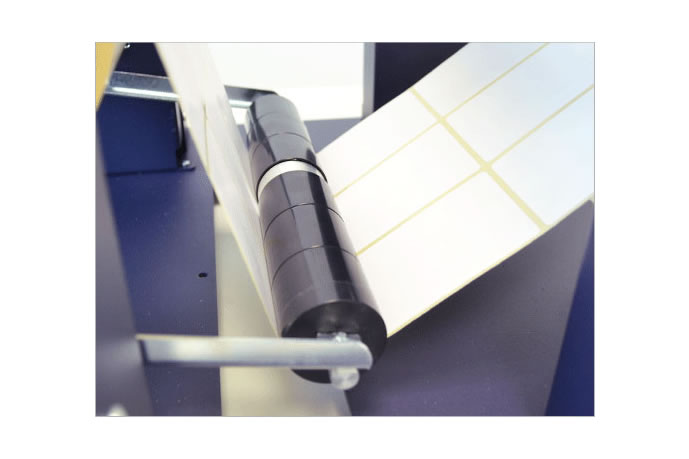

A pressing roller is positioned above the waste core holder and facilitates the matrix removal from the die-cut roll, reducing the risk of tearing and ensuring more precise operation of the machine. Perfect full bleed labels can be achieved on pre die cut media after the waste material is removed. The production of edge-to-edge printed labels on roll will become extremely easy and quick.

Workflow optimization
The main benefit in choosing the offline matrix remover is that it can complete each job without any interruptions that can be caused by a laser printing engine. Since the media will be loaded into the matrix remover at the beginning of the job, reducing production time making this unit very time efficient. As an offline solution, the matrix removing and slitting operations will not be interrupted if the printer pauses or cuts the media during the standard printing process.

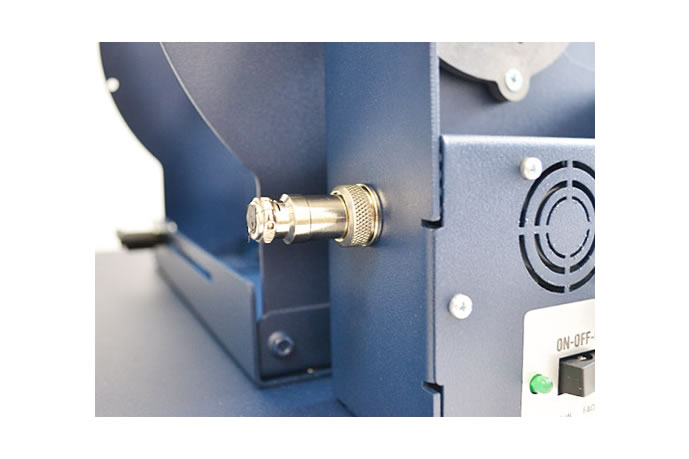

Two different models are available. The smallest MCH100MTX17 (without slitter module) or the large version named MCH100MTX25. The MCH100MTX25 model is equipped with an external auto-switching 100/240VAC - 5A (2.5A for the MCH100MTX17 model) at 24V power supply and an electronic circuit in charge of controlling the functions.

* The label matrix is the excess label material around each die cut shape where ink or toner may settle after a full bleed printing process.

Scorpio Matrix Remover and Slitter Specifications•
MCH100MTX25 MCH100MTX17
Input / Output Max. Roll Diameter 10″ (250 mm) 7.87″ (200 mm)
Maximum Media Width 8.86″ (225 mm) 6.69″ (170 mm)
Minimum Slitting Width
0.75″ (19 mm)
Number of Slitting Blades up to 8 (4 blades included) /
Slitter Module YES NO
Roll Core Size
3″ (76 mm)
Demensions
D: 19.68″, H: 25.59″, W: 35.43″
Warranty One year parts included. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.
