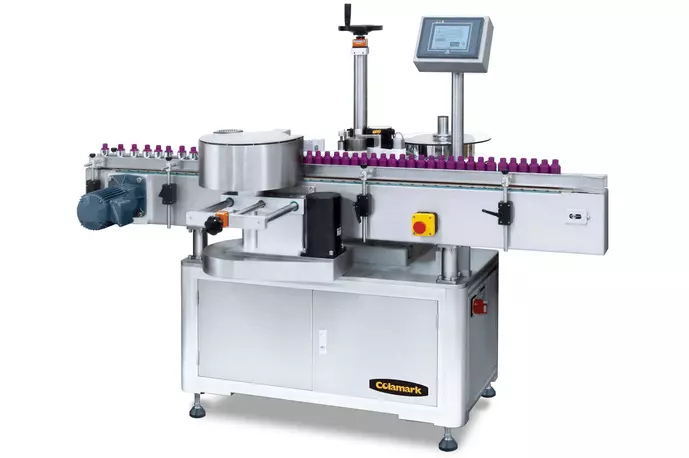

  • Colamark A117 full view

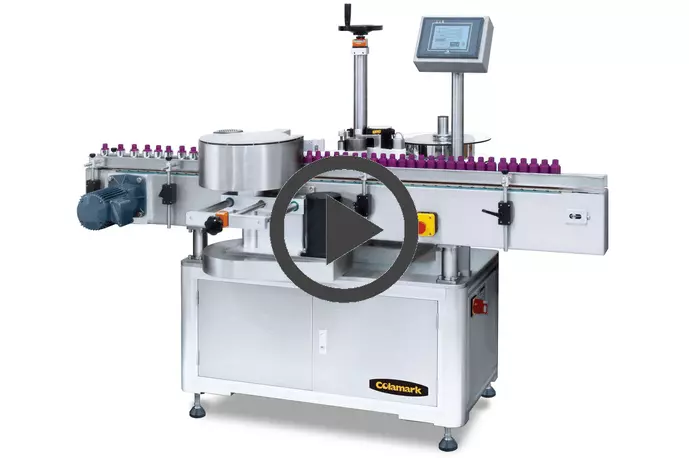

  • Colamark A117 video

Colamark A117 Orientated Wrap-around Labeling System with Turntable

  • Uses an indexing turn-table to move and hold the bottle for rotation
  • Holds the bottle for rotation at 3 points to ensure alignment accuracy
  • Capable of putting two labels on one bottle
  • Inspection and rejection functions for mistakes

Colamark A117
Wrap-Around Label Applicator for Bottles

Fast process capacity for applying wrap-around labels to round bottles and containers.

The Colamark A117 labeling machine rotates the bottle for wrap around by gripping at 3 points on the bottle body to ensure precise parallel alignment of the label and at the same time achieve label orientation and/or multiple labels on one bottle. Various optional coding devices for synchronized coding: hot stamping, thermal transfer, inkjet, thermal inkjet etc. are also available. The A107 offers integrated management of peripheral devices and includes operation parameters, alarm signals of peripherals that can be shown on the system control panel. It is widely used in the personal care products, food and beverage, and pharmaceutical industry.

The Colamark A117 labeling machine is suitable when a fast process capacity is important.

Optional inspection and rejection functions for missing label, wrong label, wrong position, and missing or illegible date/batch codes etc. are available.

Colamark A117 Specifications
Model A117
Name Orientated Wrap-around Labeling System with Turntable
Label Length 10-200mm
Bottle Size Ф20~100mm
Capacity ≤120bpm
Precision ±0.5mm
Weight 400kg
Electricity 220VAC±10% 50Hz 1.3Kw
Machine Dimensions (L)2,000mm × (W)1,100mm × (H)1,450mm
