Colamark A107 Labeling System

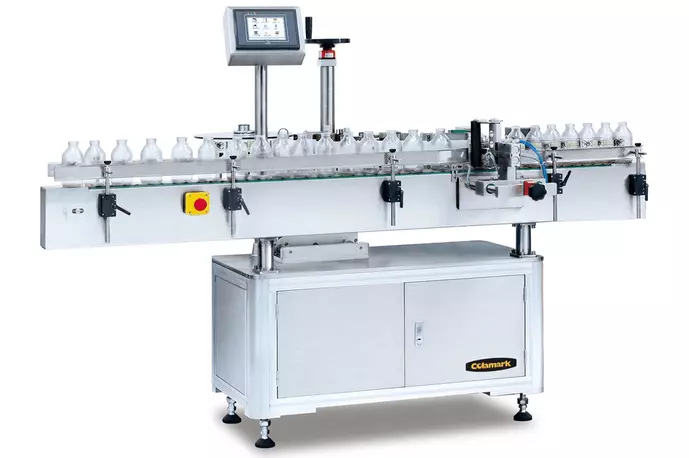

  • Colamark A107 full view

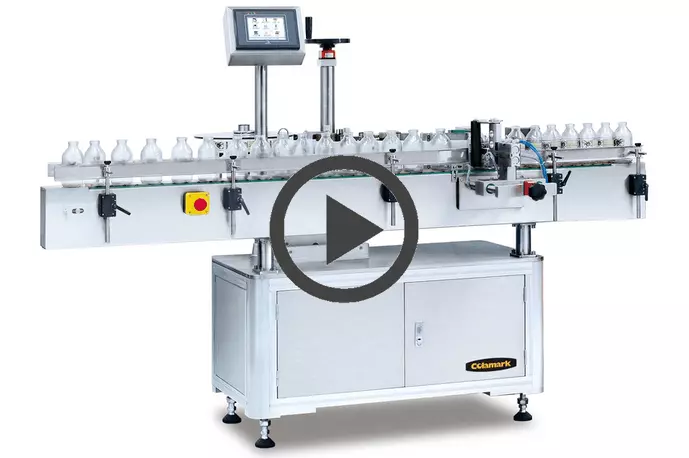

  • Colamark A107 video

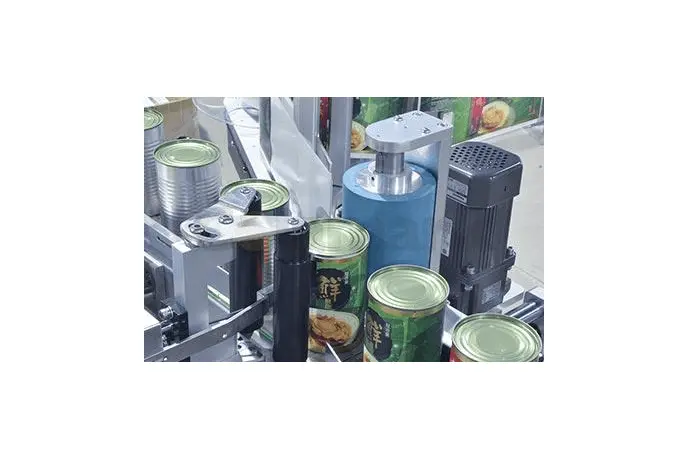

  • Cans being labeled

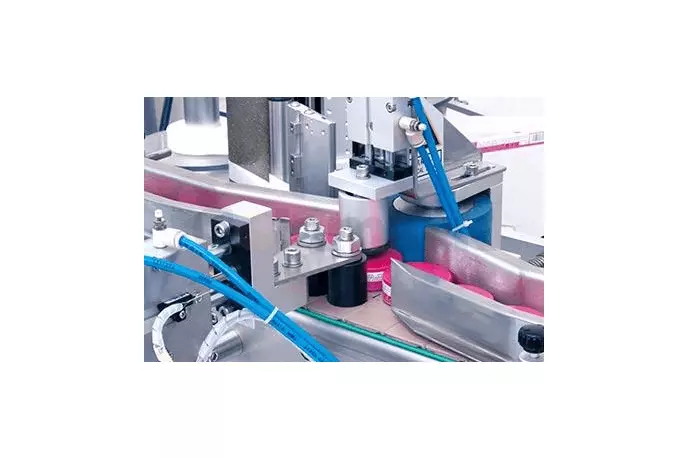

  • Closeup of labeling machine

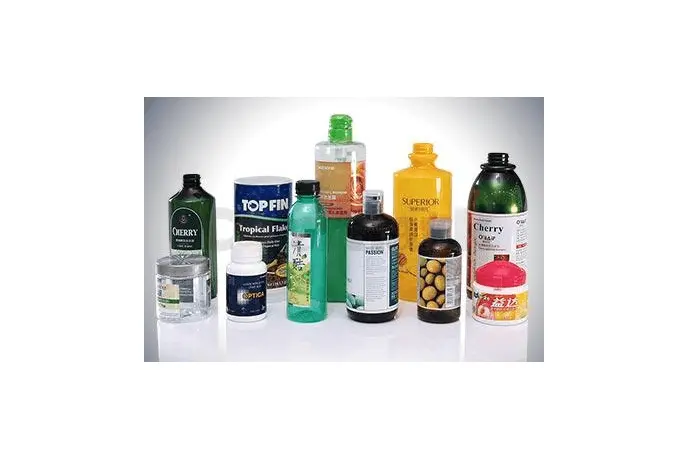

  • Bottles and jars with labels

Colamark A107 Orientated Wrap-Around Labeling System with Pneumatic Arm

  • Particularly suitable for large heavy bottles
  • Capable of putting two labels on one bottle
  • Registration sensor ensures alignment accuracy
  • Inspection and rejection functions for mistakes

Colamark A107
Wrap-Around Label Applicator for Bottles

Apply wrap-around labels to large and heavy bottles and other round containers.

The A107 labeling system is designed for wrap-around labeling on relatively large and heavy bottles and containers. It uses a pneumatic arm for bottle holding, and 3 point rotation method, to ensure that label alignment and registration are precise. It's also capable of putting two labels on one bottle. Various optional coding devices for synchronized coding: hot stamping, thermal transfer, inkjet, thermal inkjet etc. are also available. The A107 offers integrated management of peripheral devices and includes operation parameters, alarm signals of peripherals that can be shown on the system control panel.

Optional inspection and rejection functions for missing label, wrong label, wrong position, and missing or illegible date/batch codes etc. are available.

Colamark A107 Specifications
Model A107
Name Orientated Wrap-around Labeling System with Pneumatic Arm
Label Length 10-200mm
Bottle Size Ф20~150mm
Capacity ≤80bpm
Precision ±0.5mm
Weight 400kg
Electricity 220VAC±10% 50Hz 1.3Kw
Machine Dimensions (L)2,000mm × (W)1,100mm × (H)1,450mm
