Scorpio Series - Desktop Label Finishers

  • Scorpio All-in-One Series of digital label finisher

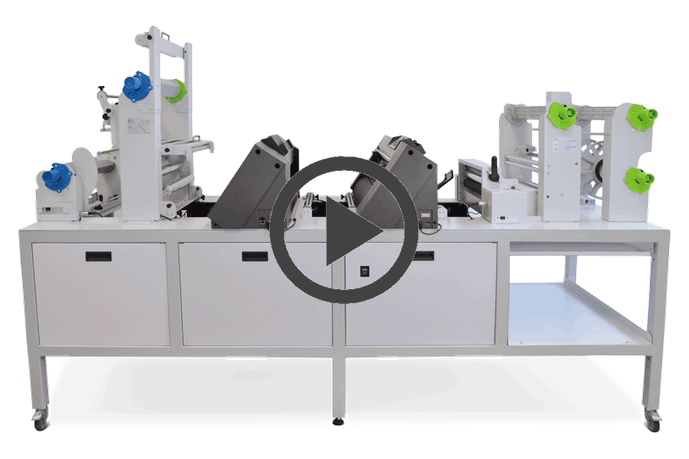

  • Scorpio All-in-One Series of digital label finishers video thumb

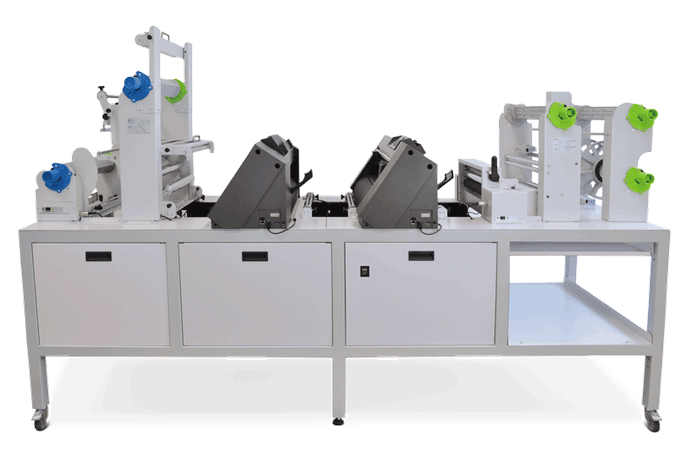

Wide Double Plotter Desktop Label Finisher

  • Scorpio Wide Double Plotter Label Finishing System
  • Double Plotter allows for fast production without compromising the cut quality
  • Extra wide finishing width makes more labels per run
  • Short run in-house label production reducing cost and inventory requirements
  • Produce full bleed labels of different shapes and sizes with ease
  • Lamination for added durability (no need for special media)
  • No need to order pre-die cut label rolls

Scorpio Label Finishing System -
Blade label finisher two times faster

All-in-one digital finishing systems that unwind, cut and laminate.

All-in-One Label Finisher
The Scorpio Double Plotter is your all-in-one label finishing powerhouse, revolutionizing your label production process by offering an extensive range of features including label unwinding, lamination for enhanced durability, double plotter digital die-cutting, precise removal of excess label material around each die-cut shape, slitting, and rewinding. It equips you with everything needed to professionally cut and finish labels, making it a vital asset for your label production. Say goodbye to the time-consuming and costly outsourcing of your label production needs.

Scorpio Software
The Scorpio Finishing System comes equipped with advanced camera technology that collaborates seamlessly with Scorpio software. The cutting position is synchronized with intuitive software and cameras to ensuring accuracy in label cutting. Importing PDF cutting files simplifies the workflow and makes label creation a breeze.

Double Plotter Finishers
The double plotter finisher guarantees faster cutting speeds. Regardless of different shapes and sizes, the two heads on the double plotter are always moving, versus a double head system where one head must be disabled while the other is in action.

Scorpio SCR35X2 Specifications•
Input / Output Roll Diameter 9.84″ (250 mm)
Minimum Web Width 4.25″ (108 mm)
Maximum Web Width 13.77″ (350 mm)
Maximum Cutting Width 13″ (340 mm)
Minimum Slitting Width 0.75″ (19 mm)
Minimum Label Length 0.39″ (10 mm)
Maximum Label Length 13.77″ (350 mm) with limitations
Lamination Module YES
Number of Slitting Blades up to 12
Maximum Media Thickness 10 mil (0.25 mm)
Maximum Cutting Speed 600 mm/s (24 in/s) in all directions
Liner Rewind Module YES
Dimensions L = 93″ (236 cm) H = 60.23″ (153 cm) W = 30.3″ (77 cm)
Roll Core Size 3″ (76 mm)
Cut Precision 0.3 mm (0.012″)
Programmable Cutting Force 20 gf - 300 gf in 31 steps (Max 300 gf)
Power Requirements 100-240 VAC, 240 watts
Interface & Software Software running with Windows 8.1 or later.
Not supported by macOS.
PC needs 2 USB port for plotters.
Warranty One year parts and labor. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.
